Super Quiet Series

Home > Ventilation Fan > Ceiling Mount > Super Quiet Series

Ceiling Mount

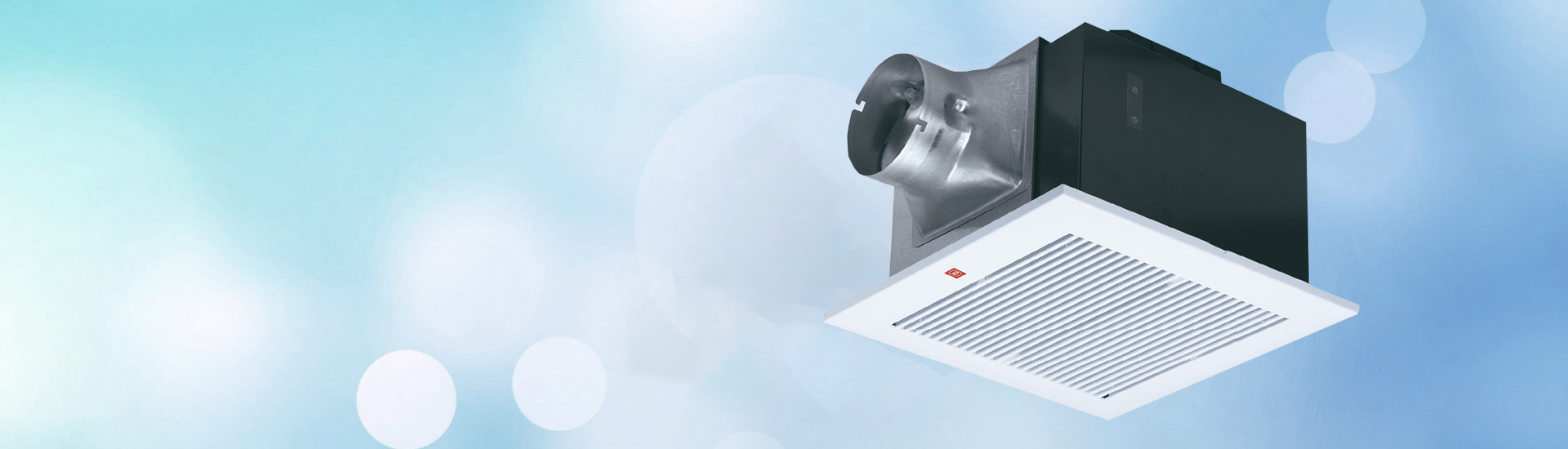

Super Quiet Series

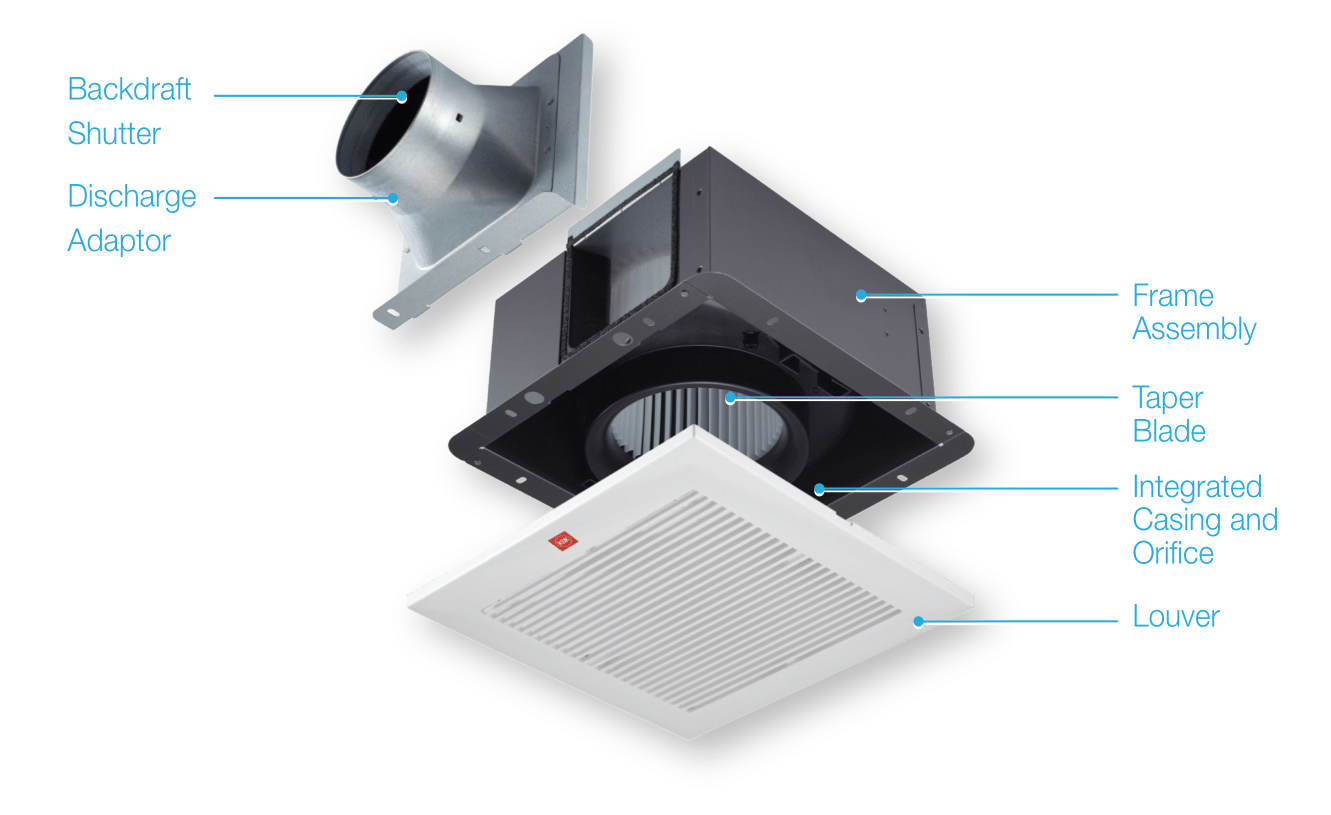

Metal Ceiling Mount Ventilating Fan

17CUG/ 17CUGA

• Condenser motor with thermal cut-off
• Well lubricated bearing for long life operation
• Pre-installed power cord
• Resonance-Noise-Absorption structure
• High performance taper blade designed Sirocco fan

ALL SPECS

Model No Voltage Air Volume Consumption RPM Noise Weight Installation Space Duct Size
[V] [Hz] [m3/h] [CFM] [W] [min-1] [dB(A)] [Kg] [mm] [mm]
17CUG/
17CUGA
220 50 85 50 8.5 750 23.5 1.9 177×177 ø 100
60 85 50 10 770 26
230 50 85 50 9.5 775 26
240 50 90 53 10.5 800 27

Note: RPM data is for reference only, values may vary subject to different conditions.

Test Conditions

– Air volume, electric characteristic and noise are specified at the static pressure of 0 Pa

– The values of noise level are measured at 1 m apart from the side of fan body when ducts are connected on outlet side.

– The values of air volume are the mid-points of results measured by our company, within ± 10% tolerance

Close
Operation Manual

24CUG/24CDG/24CHG

• Condenser motor with thermal cut-off
• Well lubricated bearing for long life operation
• Pre-installed power cord
• Resonance-Noise-Absorption structure
• High performance taper blade designed Sirocco fan

ALL SPECS

Model No Voltage Air Volume Consumption RPM Noise Weight Installation Space Duct Size
[V] [Hz] [m3/h] [CFM] [W] [min-1] [dB(A)] [Kg] [mm] [mm]
24CUG 220 50 140 82 11 615 26 2.8 240×240 ø 100
60 140 82 15.5 615 28
230 50 150 84 12.5 615 29
240 50 160 94 14 660 30
24CDG 220 50 170 100 14.5 700 29.5 2.8 240×240 ø 100
60 170 100 16.5 700 31.5
230 50 180 106 16 700 32.5
240 50 190 112 17.5 740 32.5
24CHG 220 50 200 118 18 760 33.5 2.8 240×240 ø 100
60 190 112 22 730 33.5
230 50 210 124 20 800 35
240 50 210 124 22 850 36

Note: RPM data is for reference only, values may vary subject to different conditions.

Test Conditions

– Air volume, electric characteristic and noise are specified at the static pressure of 0 Pa

– The values of noise level are measured at 1 m apart from the side of fan body when ducts are connected on outlet side.

– The values of air volume are the mid-points of results measured by our company, within ± 10% tolerance

Close
Operation Manual

27CHH

• High-Low speed selectable
• Condenser motor with thermal cut-off
• Well lubricated bearing for long life operation
• Pre-installed power cord
• Resonance-Noise-Absorption structure
• High performance taper blade designed Sirocco fan

ALL SPECS

Model No Voltage Air Volume Consumption RPM Noise Weight Installation Space Duct Size
[V] [Hz] [m3/h] [CFM] [W] [min-1] [dB(A)] [Kg] [mm] [mm]
27CHH 220 50 Hi 330 194 28 570 34 4.4 270×270 ø 150
Lo 260 153 23 480 30
60 Hi 330 194 33 570 34
Lo 270 159 26 490 31
230 50 Hi 340 200 31.5 – 35
Lo 275 162 25.5 – 31.5
240 50 Hi 360 212 34 610 36.5
Lo 290 171 27.5 520 32

Note: RPM data is for reference only, values may vary subject to different conditions.

Test Conditions

– Air volume, electric characteristic and noise are specified at the static pressure of 0 Pa

– The values of noise level are measured at 1 m apart from the side of fan body when ducts are connected on outlet side.

– The values of air volume are the mid-points of results measured by our company, within ± 10% tolerance

Close
Operation Manual

32CDH/32CHH

• High-Low speed selectable
• Condenser motor with thermal cut-off
• Well lubricated bearing for long life operation
• Pre-installed power cord
• Resonance-Noise-Absorption structure
• High performance taper blade designed Sirocco fan

ALL SPECS

Model No Voltage Air Volume Consumption RPM Noise Weight Installation Space Duct Size
[V] [Hz] [m3/h] [CFM] [W] [min-1] [dB(A)] [Kg] [mm] [mm]
32CDH 220 50 Hi 430 253 42 590 36 5.2 320×320 ø 150
Lo 300 177 32 460 28
60 Hi 410 241 48 580 35.5
Lo 285 168 33 450 27.5
230 50 Hi 440 259 46 – 37.5
Lo 315 185 34 – 29
240 50 Hi 470 277 50 650 38.5
Lo 330 194 38 490 30
32CHH 220 50 Hi 530 312 55 710 41 5.6 320×320 ø 150
Lo 400 235 45 570 34
60 Hi 525 309 61 695 40.5
Lo 390 230 47 540 33
230 50 Hi 555 327 59 – 42
Lo 430 253 49 – 35.5
240 50 Hi 580 341 64 770 43
Lo 450 265 53 615 37

Note: RPM data is for reference only, values may vary subject to different conditions.

Test Conditions

– Air volume, electric characteristic and noise are specified at the static pressure of 0 Pa

– The values of noise level are measured at 1 m apart from the side of fan body when ducts are connected on outlet side.

– The values of air volume are the mid-points of results measured by our company, within ± 10% tolerance

Close
Operation Manual
