Shutter Series

Home > Industrial Fan > Shutter Series

Industrial Fan

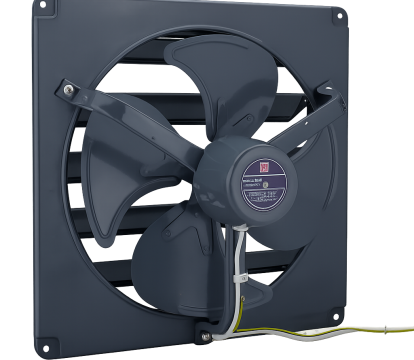

Shutter Series

Powerful Ventilation for Factories and Warehouses

High Static Pressure

Low Power Consumption
The newly developed fan and original bellmouth construction enable operation with high static pressure and low power consumption.
Low-Noise Design
The fan blade’s distinctive wave shape, developed using hydrodynamic analysis, delivers a smooth, turbulence-free airflow. The result is more air with less noise.

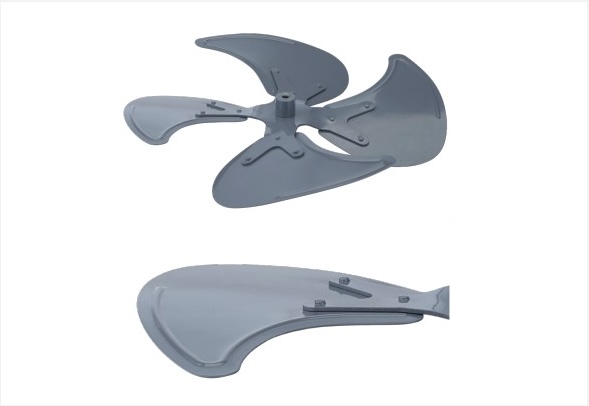

Fan wilh 3-dimensional S-shaped Cross-section Blade

High Durability

Pressure is distributed more uniformly over the surface of the new fan blade, making the blade more durable.

A special polyester resin and powder coating give a beautiful color and a highly rust-resistant finish

30KQT,40KQT

• Used in factories, warehouses or other locations where powerful ventilation is necessary
• Large metal blade assembly for abundant air volume
• Powerful, efficient and durable condenser motor
• Able to be used over an ambient temperature range from -10ºC to +50ºC

ALL SPECS

Model No Hz Consumption
[V]
RPM
[min]
Air Volume Noice
[db(A)]
Weight
[Kg]
[CMH] [CMF]
30KQT 50 42 1,185 1,220 718 46 4.9
60 51 1,255 1,270 747 47
40KQT 50 61 1,175 2,060 1,212 49 6.4
60 76 1,260 2,190 1,289 51
Note: The value in Specification table are representative characteristic value at 220V, 50/60Hz
R.P.M. data is for reference only. Values may vary subject to different conditions.

Close
Operation Manual

50AEQ2

• Used in factories, warehouses or other locations where powerful ventilation is necessary
• Large metal blade assembly for abundant air volume
• Powerful, efficient and durable condenser motor
• Able to be used over an ambient temperature range from -10ºC to +50ºC

ALL SPECS

Model No Hz Consumption
[V]
RPM
[min]
Air Volume Noice
[db(A)]
Weight
[Kg]
[CMH] [CMF]
50AEQ2 50 108 920 3,630 2,137 54 11.5
60 130 1,050 4,200 2,472 58
Note: The value in Specification table are representative characteristic value at 220V, 50/60Hz
R.P.M. data is for reference only. Values may vary subject to different conditions.

Close
Operation Manual
