Single Phase Series

Home > Air Moving Equipment > Cabinet Fans > Single Phase Series

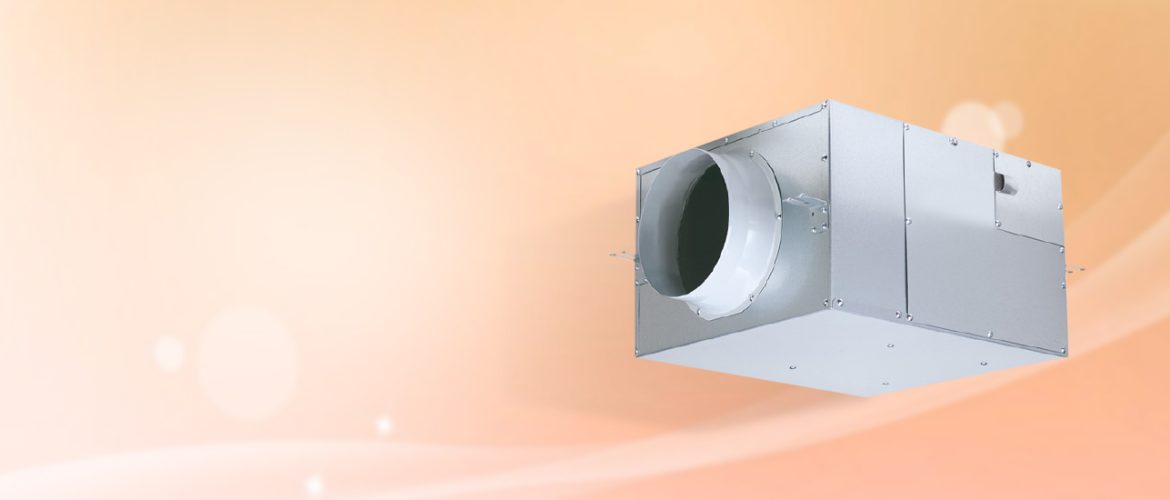

single-phase-series-2

Cabinet Fan

Single Phase Series

  • High Performance
  • Compact Size
  • Reliability
  • Flexibility
  • Low Noise Design
  • Easy Installation

Low Noise Type Cabinet Fan

KDK cabinet fans are manufactured from galvanized steel enhancing high durability. The unique suction fan design and acoustic noise absorbing material realize low noise operation. The high performance induction motor offers low consumption, long life and high reliability.

The slim, compact and light-weight structure allows easy installation at narrow ceiling space. Particular U-grooved mounting brackets prevent loosening of mounting bolts that reinforce installation safety.

12NSB/15NSB

• Twin flow fan (Sirocco fan)
• Fan casing with tapered scroll
• Embedded terminal box
• Noise absorption material adopted
• Compact size

ALL SPECS

Model No Phase Hz Consumption RPM
[min]
Air Volume Noice
[db(A)]
Weight
[Kg]
Duct Size
[mm]
Impeller Diameter
[cm]
[CMH] [CMF] Casing Side
12NSB 1 50 Hi 18 1,265 180 160 21 5.5 ø 100 128
Lo 17 1,020 145 85 17
60 Hi 23 1,370 190 112 22
Lo 19 1000 145 85 18
15NSB 50 Hi 33 1,270 340 200 25 6.5 ø 150 128
Lo 29.5 1,100 275 162 22
60 Hi 42 1,385 370 218 27
Lo 33 1,040 260 153 22
Note: The value in Specification table are representative characteristic value at 380V, 50/60Hz, 415V/50Hz
R.P.M. data is for reference only. Values may vary subject to different conditions.
